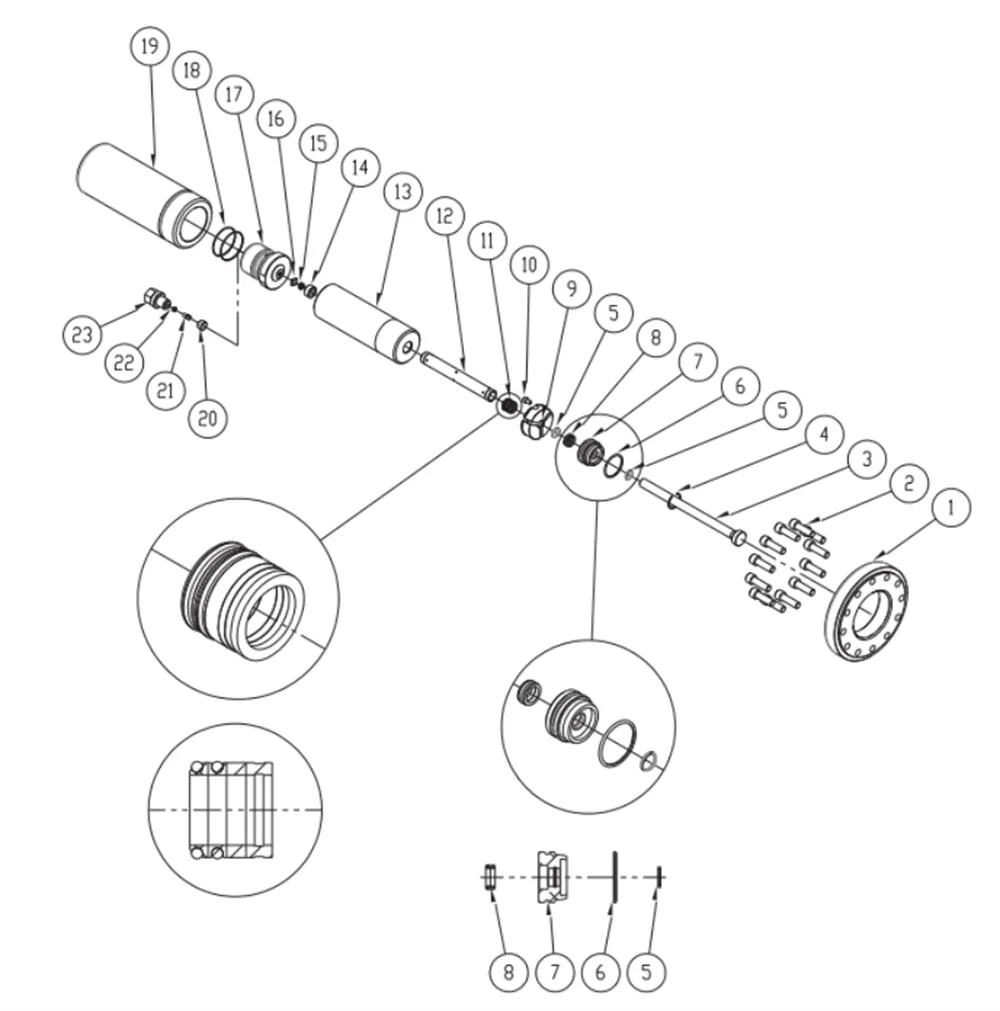

1

Clamp ring

SP4-50

2

M12x1.25x40 SHCS BLK

110-1-1240

3

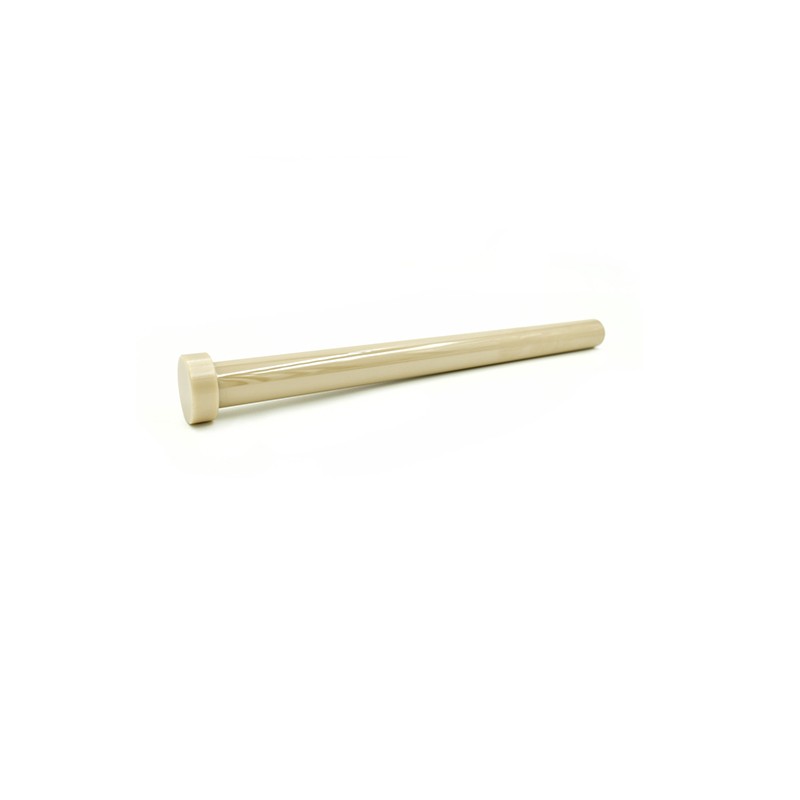

Plunger

SP-46-6

4

Internal Circlip

 501-1-0010

5

O-ring

500-5-0113

6

O-ring

500-5-0089

7

Seal Housing

SP4-45-195

8

Wiper Seal

SP1051

9

Guide Bush

SP4-46-195

10

M6 x 10 SHCS Black

108-1-0610

11

HP Seal Kit

SP1062

12

Cylinder Liner

SP4-69-195

13

Cylinder Body

SP-49-15

14

Check Valve Housing

SP-72-10

15

LP Check Valve Spring

500-12-0040

16

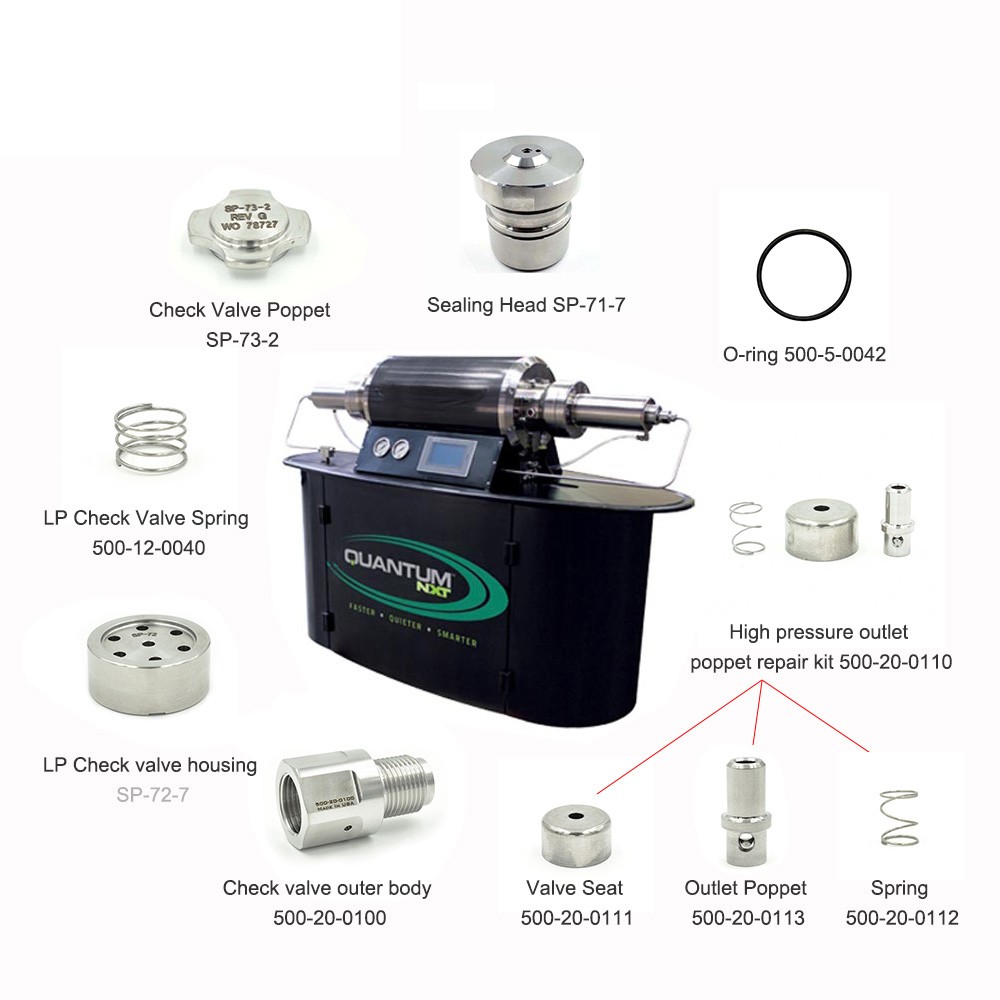

Check Valve Poppet

SP-73-2

17

Sealing Head

SP-71-7

18

O-Ring- BS033

500-5-0042

19

Cylinder Retaining Sleeve

SP2-70-5

20

Valve Seat

500-20-0111

21

Outlet Poppet

500-20-0113

22

Spring

500-20-0112

23

Check valve outer body

500-20-0100

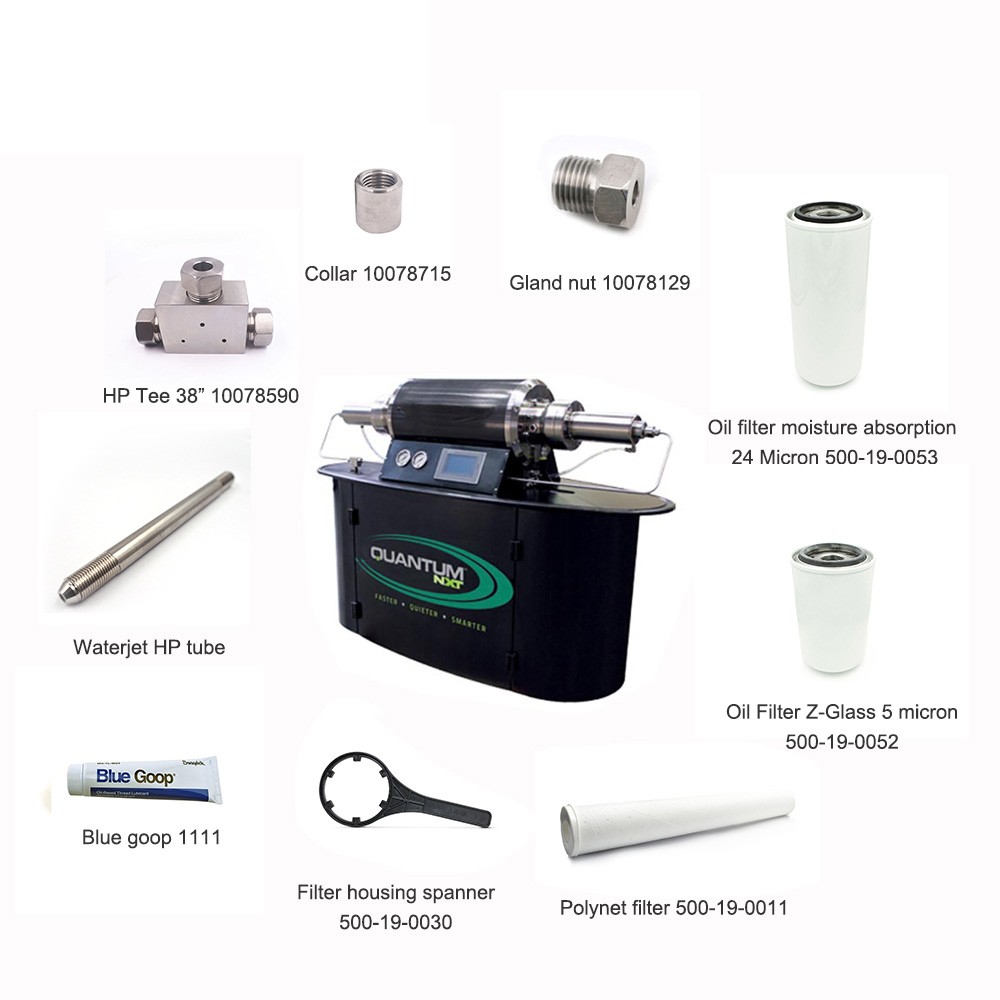

Collar

10078715

Gland nut 3/8"

10078129
